Application: Slag
Fineness: 200-325mesh

Processing of materials : river gravel, granite, diabase , limestone , calcite, dolomite , barite, talc , gypsum, bentonite , etc.
Yield: Refer to Technical Data
Case site : Southern nonmetallic mineral processing , Thermal Power Plant Limestone

Product description:

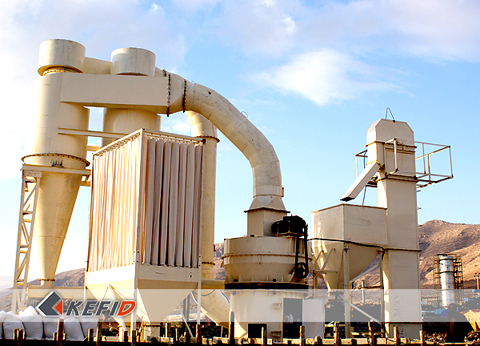

mill production line is widely used in mining, electricity, chemicals , building materials, metallurgy , refractories, power plant desulfurization , asphalt mixing plant , powder processing industries such as highways , finished in size 20-3250 mesh of arbitrary regulation .

Grinding  process:
Materials are jaw crusher , by the bucket elevator to the storage silo , electromagnetic vibrating feeder through the material evenly to the host continuously polished , milled powder under the action of the blower blows the powder machines for sorting , sorting by the pipe to the powder after storage silos , and finally by the outlet valve output is finished. Entire production line work process pressure is negative , the first blower air blown through pipes along with the powder storage silos into the upper cyclone collector , returned by the return air duct blower , forming air recycling.

Secondly, powder collector with the bottom lock powder feeder , its role is to outside pressure gas and powder collector vacuum gas isolated , greatly improving productivity. Again, the host at the bottom of the residual air and dust is sent through the pipe baghouse filter , baghouse dust and other impurities are adsorbed , the effective protection of the environment .
