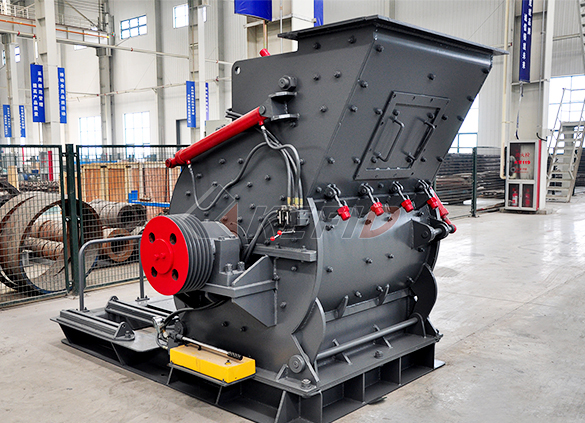

European Hammer Mill .
 |
European Hammer Mill .
|
Info of European Hammer Mill .:
OUTPUT SIZE: 0-3 mm
PRODUCTION CAPACITY: Up to 65TPH
European Hammer Mills are widely used in metallurgy, mining, chemical, cement, coal gangue, construction, sand, refractory material, ceramic and other industry, engaged in breaking and crushing the material in the operation. European Hammer Mill is mainly suitable for crushing various soft and hard ore. Whose compression strength is not higher than 320MPa. European Hammer Mill is mainly made up of frame, rotor, hammers, grizzly bar and other components.PROCESSED MATERIALS:
brittle, medium-hard materials
SPECIFICATIONS
| Model | EHM4008-75 | EHM4012-90 | EHM4015-132 |
| Diameter of the rotor (mm) | 750 | 900 | 1150 |
| Length of the rotor(mm) | 800 | 1200 | 1500 |
| Rotation speed of the rotor (r/min) | 800-1000 | 800-1000 | 700-1000 |
| Input size(mm) | <70 | <90 | <100 |
| Output size(mm) | 0-3 | 0-3 | 0-3 |
| Capacity (t/h) | 10-25 | 30-50 | 40-75 |
| Motor power(Kw) | 55-75 | 75-90 | 110-132 |
| No. of the hammers(piece) | 18 | 32 | 32 |
| Dimension(L*W*H/mm) | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
