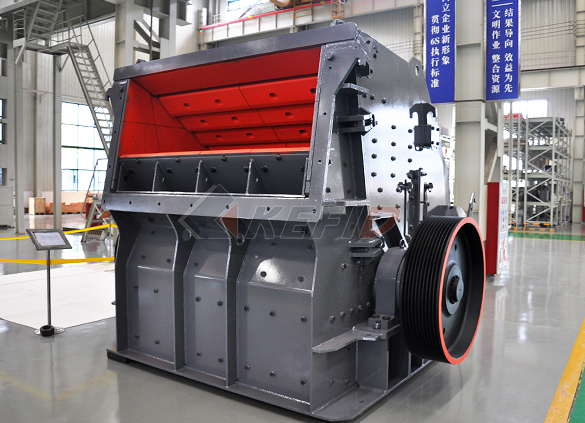

CI5X Series Impact Crushers


  • CI5X series impact crushers is a new generation of primary and secondary impact crusher and the best solution for the large capacity production line , which is designed to meet the customers requirements for high yields, cost-effective, savi

Info of CI5X Series Impact Crushers:
CI5X series impact crushers is a new generation of primary and secondary impact crusher and the best solution for the large capacity production line , which is designed to meet the customers requirements for high yields, cost-effective, saving energy. CI5X series impact crushers bases on absorbing the advantages of the last generation products and integrates the latest scientific research achievements,like  high-precision heavy rotor, involute crushing cavity,  multi-function hydraulic operating system, etc, Which improves the performance of the product and adequately protects the profits of the customers.

Output size : Depends on the material
Production capacity : 250-2000T/H

PROCESSED MATERIALS

The CI5X Series Impact Crushers is most suitable for crushing the materials whose crushing strength lower than 320MP, like mineral, rock and slag, etc. 2. Apply to material water content lower than 20%.



APPLICATIONS

Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc.

PERFORMANCE

Features:
1.Finite element analysis technology is adopted to reduce the weight of the crusher substantially and make transportation and installation more convenient.
2.The design of high-precision heavy  type rotor improves the capacity and rotating speed of rotor remarkably.
3.Adopting the design of multi-function hydraulic system realize intelligent control for frame, impact rack, output size and maintenance. Besides, the operation is much easier and operating rate is improved.
4.Efficient involute-shaped crushing chamber makes the efficiency higher and final product size well-distributed.
5.According to various working conditions, the crusher adopts wearable hammer and impact plate which ensures the equipment is in the of the optimal operation.
The exact matching power for driving motors is adopted to reach the aim of cost optimized control.
Working principle:
The CI5X Series Impact Crushers crushes material by striking energy. When it works, the motor drives the rotor rate at a high speed, on which the blow bar is installed. As soon as the material get into the affecting area of the blow bar , they will be stroke by the blow bar and thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

SPECIFICATIONS

Model Specifications (mm) Feed opening (mm) Max. feed size (mm) Capacity (t/h) Power (kW) Weight (t) Dimensions (mm)
CI5X1315 Φ1300×1500 1540×930 600 250-350 250 20 2880×2755×2560
CI5X1520 Φ1500×2000 2040×520 (2040×995) 350(700) 400-600 2×250 (2×200) 30 3390×3520×2790
CI5X1415 Φ1400×1500 1540×1320 900 350-550 250 24 2995×2790×3090
CI5X1620 Φ1600×2000 2040×1630 1100 500-900 2×200 42 3485×3605×3720
CI5X2023 Φ2000×2300 2400×1920 1300 1200-2000 2×500 76 4890×4380×4765
