Info of MTW Series Heavy Type European Grinding Mill:

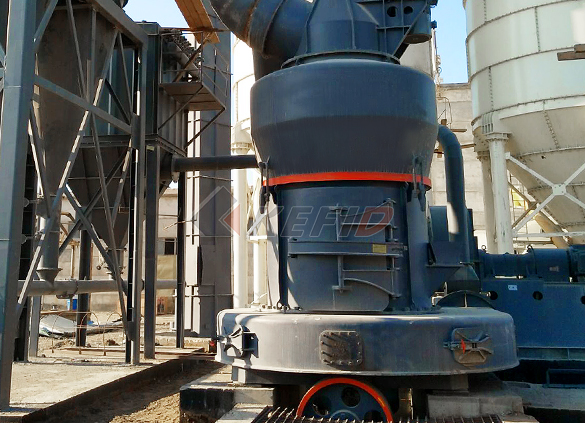

MTW Series Heavy Type European Grinding Mill
European Tech. Grinding Mill also called MTW Series Heavy Type European Grinding Mill, that is our lastest grinding machine with several patents, optimized based on our suspension mill 9518, absorbed european manufacturing technology, meets clients requirements of excellent fineness, reliable performance and favorable price.
Output size : 1.6-0.045 mm, the fineness is 0.038mm
Production capacity : 3.5-45T/H
INQUIRY
MESSAGE
PROCESSED MATERIALS
limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, ect.
APPLICATIONS
Cement, Coal , power plant desulfurization, metallurgy, Chemical Industry, non-metallic mineral, construction material, ceramics.
SPECIFICATIONS
Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.
| Model Specification Name | MTWZ110 | MTWZ138 | MTWZ175 | MTWZ215 |
| Quantity of roller (PCS) | 4 | 4 | 5 | 5 |
| Inner diameter of ring (mm) | Ф1100 | Ф1380 | Ф1750 | Ф2150 |
| Rotary speed of main frame(r/min) | 120 | 96 | 75 | 65 |
| Max. Feeding size(mm) | < 30 | < 35 | < 40 | < 50 |
| Output size (mm) | 1.6～0.045 The fineness is 0.038 | 1.6～0.045 The fineness is 0.038 | 1.6～0.045 The fineness is 0.038 | 1.6～0.075 |
| Capacity (t/h) | 3.5～10 | 6.5～15 | 11～25 | 30～45 |
| Overall dimension (mm) | 8910×6950×9010 | 9860×8340×10227 | 13500×11500×9500 | 14730×10860×10341 |
| Total weight (t) | 18 | 28.5 | 46 | 92 |
Remarks: Capacity is based on grinding limestone, 80% passing-through. If the technical data and overall dimension is changed, it is subjected to the operation manual which is together with delivered goods.
Note: Any change of MTWZ Series Trapezoid Mill technical data shall not be advised additionally.
