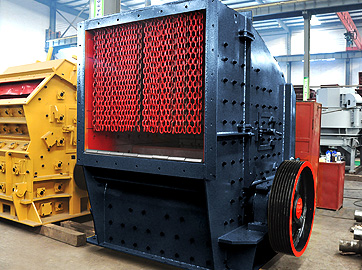

Primary Impact Crusher

  • Secondary Impact Crusher is widely used in construction material, highway and railway, cement, mining and chemical fields etc. It is designed to crush soft and medium hard rock. The size range of feed material (maximum compression strength 3

Info of Primary Impact Crusher:

OUTPUT SIZE: Depends on the material



Primary impact crusher uses high wear-resistant materials, and the best crushing chamber, which makes extraordinary performance and is very suitable to crush various kinds of soft, medium hard ore, rough pieces of material, widely used in metallurgy, mining, cement, chemicals, refractory and ceramics, highway construction, water conservancy projects, building stone project and so on.


Stone with compression strength lower than 350Mpa, such as limestone, gypsum, concrete, etc.


1. Adopt world-level manufacturing technology, and excellent production materials;
2. Heavy-duty design of the rotor, and rigorous tests to ensure the quality of the rotor;
3. Adopts integrated steel bearing structure;
4. The unique hammer plate fixtures, making the board more reliable;
5. Improved adjustment device, reducing downtime and maintenance time;
6. The choice of larger bearing specification, making carrying capacity higher;
7. Analysis of the rotor to ensure stable and reliable.


Model Spec. Feeding
size (mm)
Max. feeding
size (mm)
Capacity (t/h) Power (kW) Weight (t) Overall Dimendion (LXWXH) (mm)
PFP 1315 Ф1300X1500 1200X1530 600 180-320 160 29 2700X2570X2800
PFP 1318 Ф1300X1800 1200X1830 700 240-400 200 34 2700X2570X2800
PFP 1415 Ф1400X1530 1300X1530 700 300-480 200 38 2900X2700X3000

If there is change of the above specification, it subjects to the newest products' specifications.

Note: Any change of Primary Impact Crusher technical data shall not be advised additionally.
