500 TPH stone crusher production line configuration
Category: Wiki
Author: kefidqgh
Time :01-09

Q: what is 500 tons/h stone crusher production line equipment configuration ?

A: The high degree of automation of stone production line , complete production line in addition to power down equipment and routine maintenance , almost no manual operation. Its production of high- efficiency, low running costs , yield, high yield , finished stones uniform particle size , particle shape is good , the national high-speed material requirements.

   Here we configurations produced 50 tons of stone production line when introduced:

 1.   A feeder device :. 300x70 feeder

       Trough size 3000x700 (mm)

       The maximum feed size greater than or equal 500 (mm)

       Processing capacity is 60-120 (t / h)

       Spindle speed 350-800 (r / min)

       Motor Power 7.5 (kw)

       Weight 3225 (kg)

       Dimensions 3705x1450x1250 (mm)

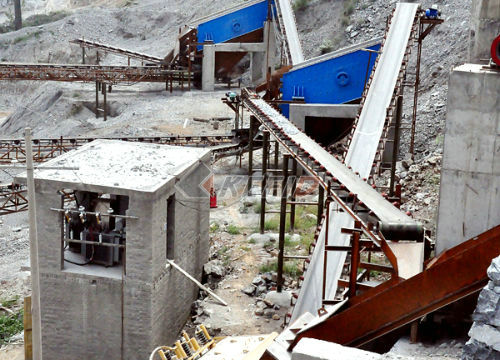

500 tons/h stone crusher production line equipment

2 thick broken - jaw crusher : PE430x600 jaw crusher

       Inlet size is 430x600 (mm)

       The maximum feed size 400 (mm)

       Nesting population adjustment range is 90-140 (mm)

       Handle is 35-60 (t / h)

       Eccentric shaft speed 275 (r / min)

       Motor Power 37 (kw) ( can be configured according to customer requirements )

       Total Weight 6.5 (t).

3 thin broken - Crusher FP-1010

        Specifications Φ1000x1050 (mm)

        Inlet size 400x1080 (mm)

        The maximum feed size 350 (mm)

        Production capacity 50-80 (t / h)

        Power was 75 (kw)

        Weight ( without motor ) 12 (t)

        Overall dimensions are 2390x2040x2600 (mm).

4 vibrating screening machines 3yzs1236 type

         Screen surface layers : 3

         Screen size is 1.32 m

         The mesh size is 5-50 (mm)

         Processing capacity is 75-245 (t / h)

         Speed ​​is 974 (r / min) double amplitude 6-8 (mm)

         Electric power is 11 (kw)

         Overall dimensions of 4300x2537x2645 (mm)

         Total Weight 3200 (kg) Screen angle of 20 °

         Screen size is 1200x3600 (mm).
